Green Roofs and Solar Energy – Biosolar Roofs Provide Pure Synergy

A flat roof is one of the best locations for a solar energy system, given that the solar modules can be adjusted to the correct angle and the most appropriate orientation. It is a mistaken belief that one has to decide between a green roof and a solar system. On the contrary with the right system, significant synergy effects are achieved when combining both.

ZinCo Solar BaseWith its Solar Base, ZinCo incorporates solar energy into green roofs and creates synergies, whether it is for generating electricity (photovoltaic) or for heating and hot water applications (solar thermal). The height of the Solar Base Frames creates enough distance between the substrate layer and the solar panels, providing the plants with enough sunlight and rainwater and enabling appropriate maintenance.

Green roof and photovoltaicsEnhanced performance of photovoltaic modules: The performance of photovoltaic modules depends on the temperature of the modules and the surrounding ambient air temperature. The rule of thumb is: “the warmer the module, the lesser the performance”. In fact, modules heat up considerably as a result of solar radiation. This is impaired by a hot roof surface such as a bare waterproofing membrane or a gravel roof. However, if combined with a green roof, solar modules will perform better. Through the cooling effect caused by evaporation at plant level, the ambient air temperature is cooler and photovoltaic cells improve their performance.

Substrate and Solar Base Frames on a roofBallast provided by the green roof build-up: One important synergy effect shows at the construction stage. The ZinCo solar build-up consists of a protection and drainage layer, Solar Base panels and Solar Base Frames. The panels are covered with a prescribed amount of growing medium and the desired vegetation is then planted. The combined weight of the growing media and plants provides the ballast required by the solar energy system to deal with wind loads. Thanks to this ballast principle, roof membrane penetrations that would normally be necessary for anchoring standard solar energy systems are not required.

Variations for East-West Orientation

Systems with east-west orientation may achieve a more even yield over the course of the day and avoid excessive current peaks

Solar Substructure Type “Saddle“For an assembly of type “Saddle”, two Solar Base Frames are mounted onto a Solar Base SB 200 in a way that their higher ends meet in the middle. The front edge of the solar panels has a sufficient distance to the substrate surface so that plants can still grow under the panels. The slope of the panels directs more rainwater to the walkways between the solar panel rows, so that an increased plant growth can be expected there.

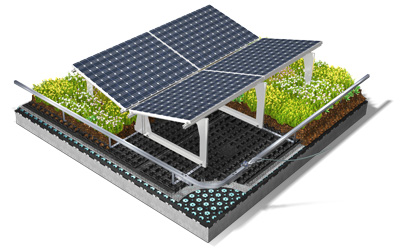

Solar Substructure Type “Butterfly“For an assembly of type “Butterfly”, the two Solar Base Frames meet with their lower sides. Rainwater is directed to the middle of the Solar Base SB 200 and distributed from there in both directions. In this case, a rather lush vegetation can be expected under the solar panels. The plants are relatively easy to access from the walkways between the panels because the panels have their maxi- mum distance of approx. 70 cm to the substrate surface there.

Checklist for Solar Plants on Flat Roofs

Please send the completed check list back to

Download pdf


Solar Energy and Green Roofs

General overview of how solar energy technology is combined with green roofs.

Number of pages
12 pages
System Specifications
System build-up



Grafik des Systemaufbaus
Solar Panel
Solar Base Frame SGR, available with inclinations from 5° to 45°
Sedum Mats or Sedum Plug Plants
System Substrate “Sedum Carpet”
ZinCo Solar Base SB 200
Fixodrain® XD 20
Root Barrier WSF 40 and Filter Sheet PV, if waterproofing is not root resistant.

Product Details

Solar Base Frame SGR

Product Image

Base Frame made of aluminium, designed for its use on green roofs, manufactured in one piece, structurally proven, matched to the ZinCo Solar Base SB 200.

Sedum Mats or Sedum Plug Plants

System Substrate “Sedum Carpet”

Product Image

System Substrate for extensive green roofs in single- or multiple layer build-up.

ZinCo Solar Base SB 200

Product Image

Complete assembly of sub-structure, for e.g. the Solar Base Frame SGR, made of recycled hard plastic with aluminium profile underneath the plastic element.

Fixodrain® XD 20

Product Image

Economic drainage, water retention and protection mat for use as an alternative to single layered extensive green roof build-ups.

Root Barrier WSF 40

Product Image

Established, proven and tested sheet, easy to install, made of environmentally friendly polyethylene for the use as root protection under extensive green roofs.

No product information available


The system solution shown relates to the green roof build-up in particular. The roof construction itself is only shown schematically and must be planned and executed according to specialist rules for waterproofed roofs.
